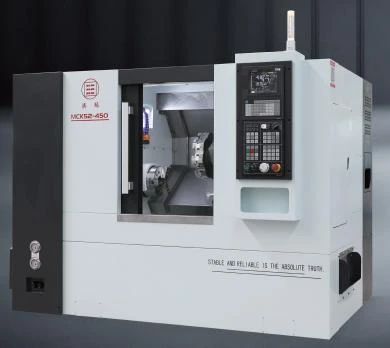

Slant-bed CNC Lathe

The MCK52-450 machine tool features a 35-degree integrated slant bed design, providing a stable and reliable structure for machining. It is equipped with an 80mm center height, 12-station servo tool turret, allowing for flexible and efficient tool changes and quick adaptation to diverse machining requirements. The spindle has a dynamic speed range of 100-3000 rpm, a maximum turning diameter of 500mm, and a maximum machining length of 450mm.

Send Inquiry Chat Now

Features

Powerful processing performance is comprehensively enhanced.

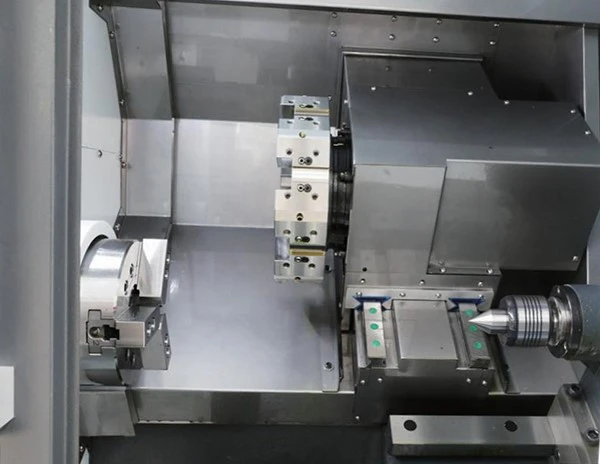

The MCK52-450 machine tool features a 35-degree integrated slant bed design, providing a stable and reliable structure that forms a solid foundation for machining. Equipped with an 80mm center height, 12-station servo tool turret, it offers flexible and efficient tool changes, enabling quick tool switching to adapt to diverse machining needs. The spindle has a dynamic speed range of 100-3000 rpm, a maximum swing diameter of 500mm, and a maximum machining length of 450mm.

Product Parameters

Project	Name	MCK52-450
Processing capacity	Maximum swing diameter over bed	Φ500mm
	Maximum swing diameter over carriage	Φ200mm
	Maximum workpiece length	450mm
	Maximum bar stock through-hole diameter	Φ51mm
X/Z axis movement	X-axis effective travel	400mm (diameter measurement)
X/Z axis movement	Z-axis effective travel	470mm
	X/Y/Z axis rapid traverse speed	15/25mm/min
	X/Z axis linear guide specifications	45/45
	X/Z axis ball screw diameter/pitch	3210/3210
	X/Y/Z axis servo motor	11.5Nm/11.5Nm/11.5Nm
Main spindle	Spindle nose type	A2-6
	Spindle through-hole diameter	Φ70mm
	Maximum spindle speed	Mechanical spindle 100-3000rpm
	Spindle motor power	11kw
	Chuck and rotary cylinder specifications	8-inch chuck / 10-inch chuck (optional) 852
Tailstock	Tailstock sleeve specifications	Φ75mm
	Tailstock sleeve travel	150mm
	Tailstock feed method	Hydraulic
Cutting tools	Tool holder specifications	Φ25*25mm
	Boring bar specifications	Φ32mm
	Tool turret (tool positions)	80mm center height, 8-station servo turret
Other specifications	Machine bed structure type	35-degree overall inclined bed
External dimensions	Length * Width * Height	224515201820
External dimensions	Machine weight	Approximately 3300 kg

Standard Accessories

1. Baoyuan Servo System	5. Hydraulic tailstock	9. Lighting system
2. Hydraulic cylinder	6. Hydraulic system	10. Warning light
3. Hydraulic chuck	7. Cooling system	11. Included tools
4. Servo hydraulic lifting power tool turret	8. Automatic lubrication system	12. Operating manual
