Slant-bed CNC Lathe (fully Enclosed)
The MCK40/46-300D series machine tools feature a 35-degree integrated slant bed for stable structure. Equipped with an 80mm center height, 12-station servo turret for convenient and efficient tool changes, and a flexible spindle configuration. Different nose types, through-hole diameters, speeds, and chuck specifications can be selected according to requirements. With powerful performance, it can handle diverse machining scenarios. The spindle dynamic speed is 100-3000 rpm, with a maximum turning diameter of 500mm and a maximum machining length of 280mm.
Features
Precise tool arrangement facilitates high-volume production of small workpieces.
The MCK40/46-300 series machine tools feature a stable structure with a 35-degree inclined bed. The bed has a maximum swing diameter of φ460mm, and the X/Z-axis rapid traverse speed reaches 15/25 m/min. It comes standard with a tool arrangement system for 20mm tool holders, offering quick response and outstanding efficiency. The spindle speed ranges from 100 to 4500 rpm, the maximum swing diameter is 460mm, and the maximum bar stock through-hole diameter is 40mm.
Product Parameters
| Project | Name | MCK40-300 | MCK46-300 |
| Processing Capacity | Maximum swing diameter over bed | Φ460mm | Φ460mm |
| Maximum swing diameter over carriage | Φ150mm | Φ150mm | |
| Maximum workpiece length | / | / | |
| Maximum bar stock through-hole diameter | Φ40mm | Φ40mm | |
| X/Z Axis Movement | X-axis effective travel | 800mm (diameter measurement) | 800mm (diameter measurement) |
| Z-axis effective travel | Collet chuck: 400mm | Collet chuck: 400mm | |
| X/Z-axis rapid traverse speed | 15/25mm/min | 15/25mm/min | |
| X/Z-axis linear guide specifications | 30/30 | 30/30 | |
| X/Z-axis ball screw diameter/pitch | 2508/3210 | 2508/3210 | |
| X/Z-axis servo motor | 6Nm/6Nm | 6Nm/6Nm | |
| Spindle | Spindle nose type | A2-5 | A2-5 |
| A2-6 (Optional) | |||
| Spindle through-hole diameter | Φ48mm | Φ48mm | |
| Φ70mm (optional) | |||
| Maximum spindle speed | Electric spindle 100-4500 rpm | Electric spindle 100-4500 rpm | |
| Mechanical spindle speed: 100-3000 rpm (optional) | |||
| Spindle motor power | 5.5kw | 7.5kw | |
| Chuck and rotary cylinder specifications | 40 jaw chuck 646 | 40mm chuck 646 | |
| 60mm chuck 852 (optional) | |||
| Tailstock | Tailstock sleeve specifications | / | / |
| Tailstock sleeve travel | / | / | |
| Tailstock feed method | / | / | |
| Cutting Tools | Tool holder specifications | Φ20*20mm | Φ20*20mm |
| Boring bar specifications | Φ20mm | Φ20mm | |
| Dota(Knife position) | Tool arrangement | Tool arrangement | |
| Other Specifications | Machine bed structure type | 35-degree inclined bed | 35-degree inclined bed |
| External Dimensions | Length * Width * Height | 1910*1530*1740 | 1910*1530*1740 |
| Machine weight | Approximately 2500 kg | Approximately 2500 kg |
Standard Accessories
| 1. Baoyuan Servo System | 5. Hydraulic system | 9. Warning light |
| 2. Hydraulic cylinder | 6. Cooling system | 10. Included tools |
| 3. Hydraulic chuck | 7. Automatic lubrication system | 11. Operating manual |
| 4. Servo hydraulic lifting power tool turret | 8. Lighting system |
Optional accessories
| 1. Automatic screen printing machine | 2. Truss-type robotic arm automation | |
The above examples do not represent all possible options; customization is available based on customer needs.
Core components

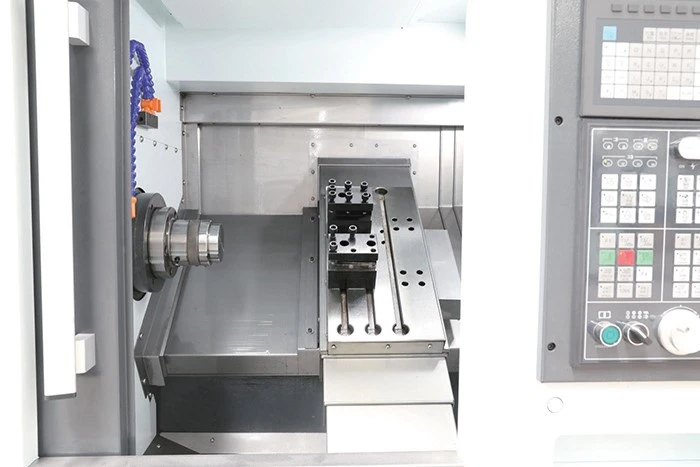

Slanted track tool turret
