China slant bed CNC lathe machine CK35L

Name: JD36P slant bed high-speed CNC machine tool Product introduction The characteristics of the high speed, high precision, high rigidity, stability and reliability of the high speed CNC lathe.Adopt Taiwan famous brand roller guide rail, heavy cutting processing.The power head can be milling,...

Send Inquiry Chat Now

Features

In the meantime, our company staffs a group of experts devoted to your advancement of Brass Ball Machine, Automatic Drilling Machine Project, Alloy Wheel Cnc Lathe. The working experience in the field has helped us forged a strong relations with customers and partners both in domestic and international market. If needed, welcome to make contact with us by our web page or phone consultation, we will be delighted to serve you.

Product introduction

Name: JD36P slant bed high-speed CNC machine tool

The characteristics of the high speed, high precision, high rigidity, stability and reliability of the high speed CNC lathe.Adopt Taiwan famous brand roller guide rail, heavy cutting processing.The power head can be milling, drilling, tapping, boring, reaming, and car processing.

Main technical parameters

The maximum rotary diameter of the bed	mm	ɸ500
The maximum turning diameter of a mop	mm	ɸ200
Maximum Z travel	mm	Standard390/longer470
Maximum X stroke	mm	600
Fast moving speed	m/min	X:24 z:24
Diameter of spindle hole	mm	ɸ56
Spindle motor power	kw	5.5servo
Spindle speed	rpm	5000
Cutter area	mm	20x20
X, to the torque of the motor	nm	7.7nb 7.7n
X, to connect the Z to the motor		Straight league
X, to the z-bar specifications		X:2510 z:3210
X, to Z to roller rail specifications		X:25 z:30
Repeat positioning accuracy	mm	0.002
Positioning accuracy (machine precision)	mm	0.01
The spring clamping specification		ɸ65chuck M55drawn tube
Chuck specifications	mm	ɸ200/ɸ160(8"/6")
Hydraulic rotary oil cylinder specification (hollow)	-	646(can pass ɸ46 within the bar)
Cooling water pump power	w	220w
Machine weight	kg	≈2500
Machine dimensions	mm	≈2150x1700x1800

What is CNC Slant Bed Lathe Machine?

The two guide rail planes of the slant bed CNC lathe machine intersect with the ground, forming an inclined plane with an inclination angle of 30°, 45°, 60°, and 75°.The slant bed CNC lathe machine is a right-angled triangle. Naturally, with the same guide rail width, the X-axis carriage of a slant bed is longer than that of a flat bed. The practical significance of this in lathes is that it allows for more tool positions. The cross-sectional area of a slant bed CNC lathe machine is larger than that of a flat bed of the same specification, meaning it has stronger resistance to bending and torsion.

Main configuration

Absolute value servo system of Beijing kaine emperor bus (or selected Taiwan)

Resin sand casting (domestic)

Main shaft (domestic brand or choice of Taiwan)

Automatic lubricating system (domestic)

Special bearing of screw rod (inlet)

Linear guide (Taiwan)

Hydraulic clamping system (domestic or selected Taiwan)

Blade rack (optional multi-station servo knife tower in Taiwan)

Main motor (servo motor)

Main electrical components (snyder)

According to the requirements of the customer, the selection

Advantages of CNC Slant Bed Lathe Machine

Speed and Efficiency

Slant Bed lathes, with their inclined design, often provide faster chip evacuation, leading to increased efficiency.

Versatility

Flat Bed CNC Lathes shine in handling a variety of materials and larger workpieces, offering versatility in production.

Maintenance and Durability

While Slant Bed lathes may require more frequent maintenance, their design often enhances tool life, balancing the equation.

Improved chip removal

The slanted bed design ensures that chips fall away from the cutting zone, which minimizes the risk of re-cutting chips and improves tool life.

Better access to the workpiece

The tilted design improves the operator's visibility and accessibility for loading and unloading parts.

Faster setup times

Many slant bed lathes come with automated tooling systems, which reduces downtime between setups.

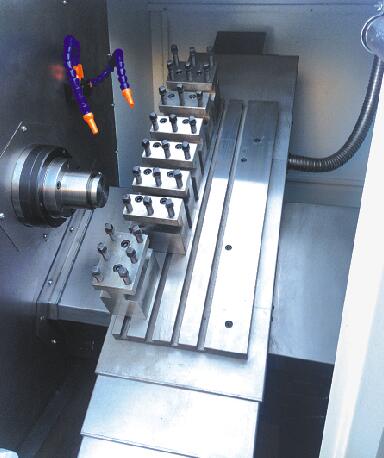

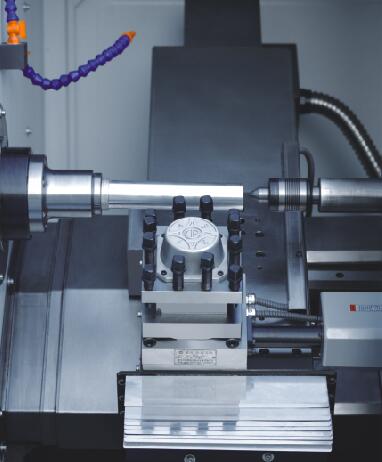

Equipment details

The main shaft maintenance should be paid attention to before and after maintenance

The following points should be noted before and after maintenance:

1. Be safe before maintenance.Ensure personal safety and equipment safety;Verify that the input power supply is completely disconnected to do the operation, otherwise there is a danger of electric shock.For example, the emergency stop button on the action panel should be quickly loosened.

2. Before maintenance, make proper use of the hygiene around the machine tool to prevent the disassembly of parts and wastes.See whether machine tool enjoys "county class" treatment, be affected by environment whether very big.

3. Before maintenance, relevant preparations should also be made.For example, whether the tools are at hand, whether there are clean rags, whether there are barrels or boxes of containers, mainly for fear that during the removal process, oil, water, etc., will be left on the ground.

4. Be familiar with the working principle of CNC system, driver, mechanical and electrical parts before maintenance.

5. Before the repair, should observe the product, to see if the product deformation, burr is big, is the cause of the blade gap big or knife shield, whether the operator caused by wrong operation and so on, to listen to the voice of the machine tool, machine tool has been stuck there is no clear in time, check whether the screw is loose, whether there is a shift phenomenon.The external solution, if the product is deformed, will consider the material problem.

6. In the maintenance, the simple problem should be started before the general special.

7. During maintenance, it should be divided into pieces to see if it is the problem of oil, water, electrical, mechanical, etc., to determine the direction of investigation.

8. When repairing, if it is to be removed, a positioning value should be removed. When it comes to the assembly problem, it cannot be removed directly, and the parts should be marked to prevent the change.In order to avoid "easy to break down, difficult to install", it is important to consider the precision of the machine tool.

9. After the repair, check the oil circuit, whether all the water is open, whether there is a tool to forget in the machine, and cause another failure.After confirmation, electricity, water, oil, etc., in operation, check if there are other problems.

10. The maintenance of machine tools is now "change work", because it can improve the production efficiency, shorten the average repair time, improve the maintenance level, replace the template, and then slowly repair.

11. During the actual maintenance process, there may be multiple failures at the same time. I feel that as long as the machine tool is repaired, a variety of methods will be used

LATHE SAFETY AND PRACTICE

1. Do Not use the lathe if you are too tired, hungry, sad, mad, or dehydrated. Never work while under the influence of drugs, alcohol, or any medication that creates drowsiness or impaired thinking.

2. Never use the lathe until you have been trained on and understand the safety issues and procedures specific to use of the lathe. Obtain advice from your instructor or woodshop manager if you are not thoroughly familiar with the operation of the lathe.

3. Pay attention to your "gut feeling" or that "little voice in the back of your head" if something doesn't feel right or if an operation feels dangerous then it probably is, so STOP and think it through and/or talk with your instructor or woodshop manager. There is a probably a safer way to do the operation.

4. Always wear the full-face shield when turning either spindle or faceplate turnings.

5. Wear hearing protection and dust mask during extended periods of turning time. Be especially mindful of dust from many exotic woods, spalted woods or any wood from which you notice a skin or respiratory reaction.

6. Tie back long hair or beards, do not wear gloves, and avoid loose clothing, jewelry or any dangling objects that may catch on rotating parts or accessories. Becoming entangled in the rotating equipment can lead to serious injury or death.

7. Like all machines you must give the lathe your undivided attention during use. Do not look up at activity that may be happening around you or engage in conversation while engaged in turning.

Contact now

FAQ

Q: What does CNC mean in lathe machine?

A: A computer numerical control lathe is a machine that turns material around a central spindle and stationary cutting tool. Your material's movement is dictated by coded instructions fed through a computer rather than operated with manual labour.

Q: What is the difference between slant bed and flatbed CNC lathes?

A: Slant Bed CNC Lathes excel in intricate designs, while Flat Bed CNC Lathes offer stability for larger, less complex components.

Q: What is a CNC bed?

A: A CNC bed mill is designed for large workpieces and heavy-duty applications. These machines feature large, flatbeds for stabilizing workpieces, and they can move work tools vertically or horizontally to remove material.

Q: What are the advantages of CNC machines over machines like lathes?

A: Since it's fully automated, CNC lathe machining reduces production time, which enables tool changes, tool post adjustments, and other changes during production to be done much quicker. The process generates less scrap as well, saving on material costs without affecting the quality of the finished product.

Q: What is the advantage of a slant bed lathe?

A: As we have touched upon, the slant bed lathe offers an effortless chip removal boosted by the effects of gravity. This is a big advantage that the machine has on the flatbed lathe, which requires manual labour to remove the chips and can also cause wear and tear if left.

Q: What is the angle of a slant bed lathe?

A: Typically, the bed of the lathe slants at a 30- or 45-degree angle, although some 60-degree models also are available.

Q: What is a lathe bed?

A: The bed is a large horizontal structure or beam that's used to support other parts of a lathe like the headstock and tailstock. With the exception of woodworking lathes, nearly all lathes have a bed. It's the long platform on which these parts are mounted.

Q: Which is better CNC lathe or CNC milling?

A: While CNC Milling machines offer a wider range of tools for cutting and shaping, CNC Lathes are ideal for cylindrical objects. Make sure that you assess your production needs and choose one accordingly.
