Name: jz-a640-16 series drilling and tapping center

Machine characteristics
 The machine adopts high strength resin sand casting, the wide guide base of the processing center, the screw rod adopts 3210/4010 double nut ball screw, ac servo motor drives.The machine is rigid and has a high precision stability. The system is equipped with RS232 communication interface, which can be used for various machining precision requirements and complex and small size parts.
 The system can be equipped with the system of triling, guangzhou numerical control, FANUC.SEIMENS and other systems to meet different user needs.



Main configuration
 Main configuration
 Taiwan new generation bus system/nanjing da feng system
 BT30 synchronous electric spindle
 Direct link high-speed spindle
 Resin sand casting
 High pressure cooling water pump
 Arm type tool bank
 Taiwan silver roller rail/Yintai roller screw
 Skip ball screw rod/upper silver ball screw rod
 Three axis absolute value servo motor
 Main electrical components France schneider
 Mobile electronic handwheel
 USB interface
 Lube rundown system
 Fully enclosed processing area

Main technical parameters

Projects	unit	JZ-A840-16	JZ-A640-16	JZ-A530-16	JZ-A425-16
Maximum hole diameter	mm	20/30	20/30	20	20
Maximum tapping diameter	mm	m16 m22	m16 m22	m16	m16
Maximum milling cutter diameter	mm	50	50	50	50
Spindle speed	mm	BT30	BT30	BT30	BT30
Broing accuracy	mm	0.01	0.01	0.01	0.01
Precision milling round	mm	0.01	0.01	0.01	0.01
Tool change time	second	1-1.6	1-1.6	1-1.6	1-1.6
X.Y.Z axis repeat positioning accuracy	mm	0.01	0.01	0.01	0.01
Table stroke X Y Z axis	mm/min	800x420x420	600x400x420	500x300x420	435x260x400
Distance between the working table and the main shaft	mm	150-600	150-600	150-600	150-550
Table siza	mm	1400x420	1200x420	1100x3200	900x260
Working t-slot	mm	3-18x140	3-18x140	3-18x100	3-18x100
Three axis servo motor power	kw	x1.8 Y1.8 Z2.6	X1.8 Y1.8 Z2.6	X1.8 Y1.8 Z2.6	X1.8 Y1.8 Z1.8
Triaxial connection mode		hard straight league	hard straight league	hard straight league	hard straight league
Three axis ball screw specification	X3210 Y3210 Z4010	X3210 Y3210 Z4010	X3210 Y3210 Z4010	X3210 Y3210 Z3210	X2510 Y2510 Z3210
Cooling water pump power	kw	0.55	0.55	0.37	0.37
Machine siza	mm	2600x2300x2400	2200x2200x2400	1950x1900x2350	1800x1800x2200
Machine tool gross weight	kg	about3600	about3000	about2400	about2000
Maximum load weight of the table	kg	about400	about400	about250	about200

Equipment details

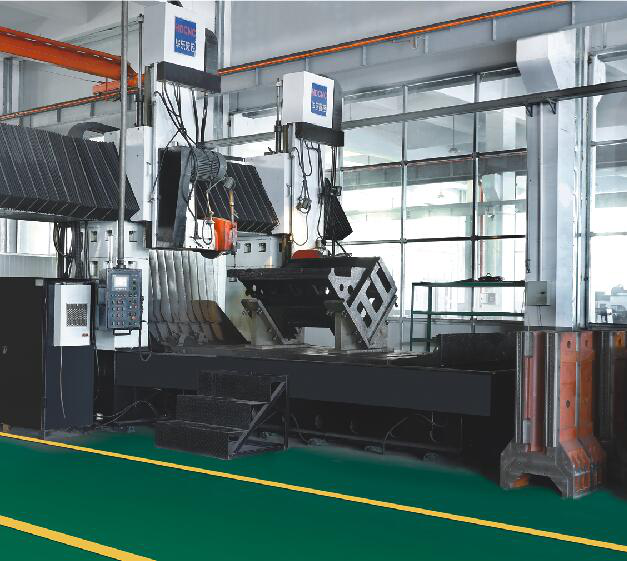

Manufacturing plant



Service commitment
 Pre-sale, sale, after-sales service guarantee system
 At the beginning of sales, we will have a professional sales engineer to patiently communicate with you, understand your needs and choose the best solution for you.We accept special customization for your special needs.
 Since equipment reach the customer time, the quality of the machine tool itself causes of failure, one year free warranty, fault caused by the quality of the machine tool itself reason, also actively cooperate with, repair, maintenance.
 Guarantee the supply of spare parts for the whole life, make sure to buy the machine.Hongchuang customer service center is equipped with special machines, electricity and hydraulic maintenance engineers, 48 hours in the province, and 72 hours of domestic service in place.
 When you use hongchuang products to help you, please call hongchuang service center and we will help you.

FAQ

 Q: Are we a trading firm or a manufacturer?
 A: We are a MANUFACTURER.
 Q: What’s our payment mode?
 A: L/C, T/T
 Q: Can machines be customized?
 A: YES.
 Q: How long is the warranty period?
 A: 12 months.
