Factory Directly Provide Best Price Cnc Machine For Metal JD32P-L
Specification Packing Delivery Packing Strong wood Packing Delivery Time Within 60 days Product Details Our After-sales Service Center 400 1810 880 Features:to provide customers with a full set of processing technology Before selling,our professional sale engineer will communicate with your...
Features
Specification
| Main technical parameters | Unit | JD32P-L |
| Maximum rotary diameter of the bed | mm | Φ380 |
| Maximum turning diameter of a mop | mm | Φ180 |
| Maximum Z travel | mm | 360 |
| Maximum X stroke | mm | 600 |
| Fast moving speed | m/min | X:24 Z:24 |
| Diameter of spindle hole | mm | Φ48 |
| Spindle motor power(Common spindle/Spindle unit) | kw | 4.0 frequency conversion/3.7(5.5)servo |
| Spindle speed (Common spindle/Spindle unit) | rpm | 3000/5000 |
| Tool rack(Cutter area) | mm | 20×20 |
| X direction,Z to motor torque | nm | 6NB,6N |
| X to,Z to the motor | Straight league | |
| X direction,Z to the screw bar specification | X:2510 Z:3210 | |
| X direction, Z to roller rail specification | X:25 Z:30 | |
| Repeat positioning accuracy | mm | 0.002 |
| Positioning accuracy(machine accuracy) | mm | 0.01 |
| Spring clamping specification | Φ56 Clip head,M48 tube | |
| Chuck specifications | mm | Φ200/Φ160(8"/6") |
| Hydraulic rotary oil cylinder specification(hollow) | - | 536(can pass Φ36 within the bar) |
| Cooling water pump power | W | 90W |
| Machine weight | Kg | ≈1600 |
| Machine dimensions (length*width*high) | MM | ≈1500×1320×1620 |
Packing Delivery
Packing
Strong wood Packing
Delivery Time
Within 60 days

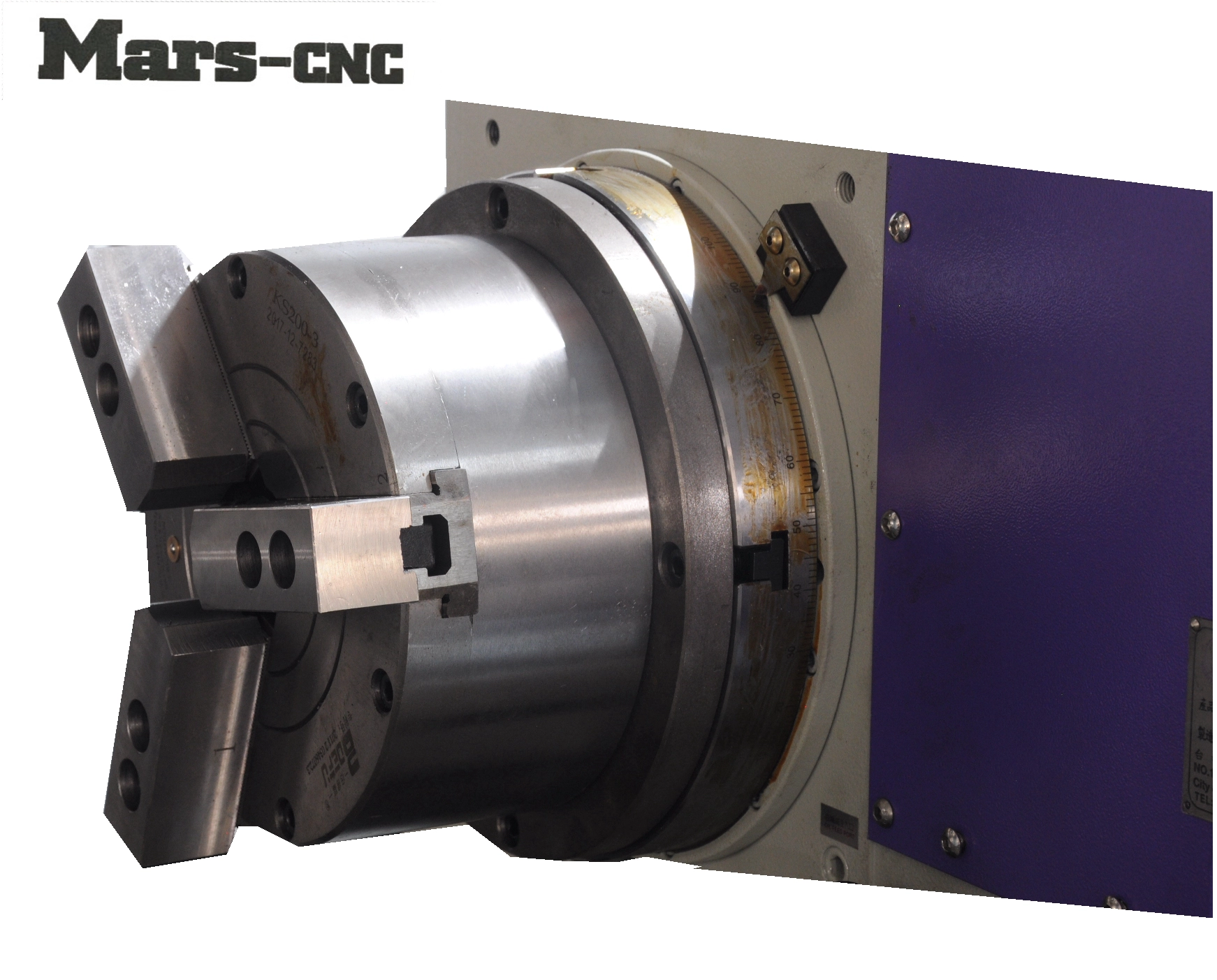

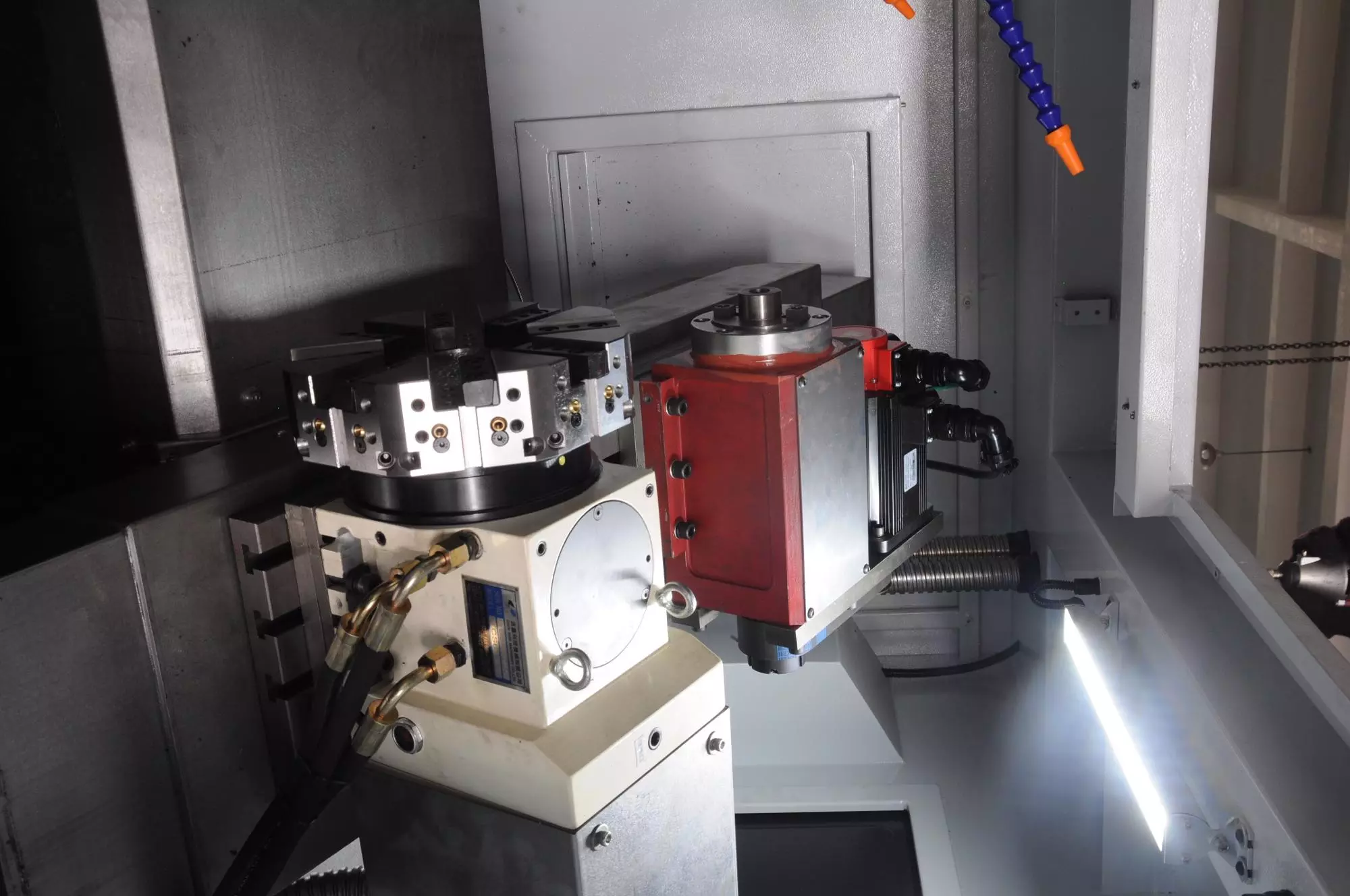

Product Details
Our After-sales Service Center
400 1810 880
Features:to provide customers with a full set of processing technology
Before selling,our professional sale engineer will communicate with your requires,
will suggest the best programme for you, meanwhile we are very gland to produce
for your special requires.
We promise free warranty from customer received the machine within one year if it
caused by quality of equipment.
We promise repair ,maintenace the amlfunction which beyond our warranty scope
when costumer received our machine. We promise supply equipment auto part in all
of its life.
Our company have professional services sites for customers with professional mach
inery.electronic, hydraulice service workers,we can supply to service same province
customers
We will try our best to help you when you need during use our machine.
Our Certificates
FAQ
Q.What payment terms you can accept?
A:Mostly we adopt T/T ,But L/C D/P D/A also available.
Q:What is the packing method?
A:We use wooden cases for shipment.
Q:Do you have a warranty? A: how long is the warranty?
A:Yes we have. Our warranty period is one year.
Q:How about your goods ?
A:You can trust us .We have our own engineering team and they
come from TaiWan. And we adopt Italy advanced core technology.
Q:Will you deliver the right goods as ordered ?
A:Yes we will . The core of our company culture is honesty and
credit. We have always been alibaba’s Gold Supplier .If you
check with alibab ,you will see that we have never got any com
plaint from our customers.
