Lathe Machine

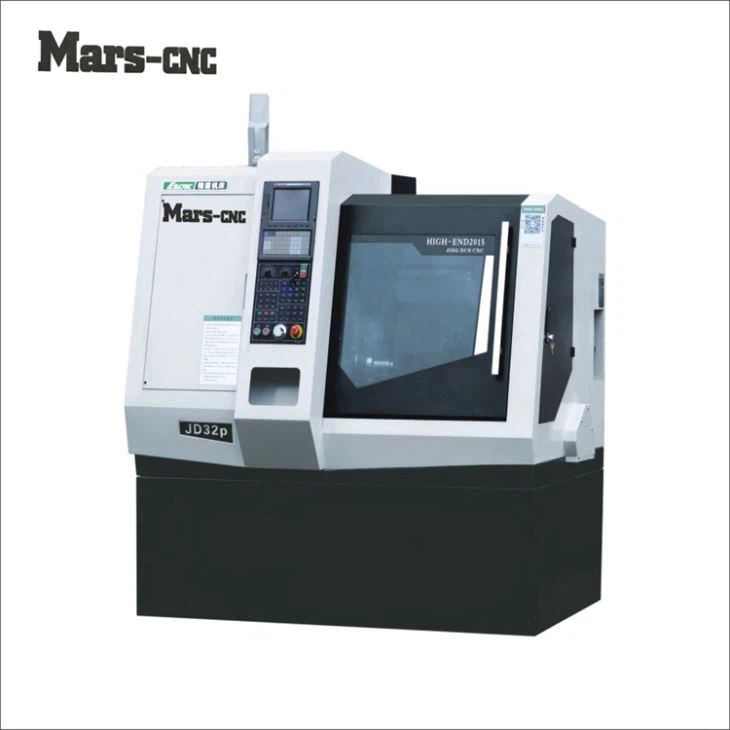

Heavy Cutting Liner Guide Slant Bed Cnc Machine JD32P

Heavy Cutting Liner Guide Slant Bed Cnc Machine JD32P

machine specification more details product benefits 1. The assembly is convenient and simple. With a little training, we can finish the high quality assembly. Because the precision of the machine tool determines the precision of the transmission mechanism, the transmission mechanism is composed......



            machine specification


Main technical parameters            JD32P
Maximum rotary diameter of the bed    Φ400mm
Maximum turning diameter of a mop   Φ150mm
Maximum Z travel                    280(Limited travel except chuck)mm
Maximum X stroke                    600mm
Fast moving speed                   X:24 Z:24m/min
Diameter of spindle hole               Φ48mm
Spindle motor power                  3.7servo kw
Spindle speed                        5000rmp
Cutter area                          20×20mm
X direction,Z to motor torque           6NB.6Nnm
X to,Z to the motorStraight league
X direction,Z to the screw bar specificationX:2510 Z:3210
X direction, Z to roller rail specificationX:30 Z:35
Repeat positioning accuracy                0.002mm
Positioning accuracy(machine accuracy)      0.01mm
Spring clamping specificationΦ56 Clip head,M48 tube
Chuck specifications                       Φ200/Φ160(8"/6")mm
Hydraulic rotary oil cylinder specification(hollow)  536(can pass Φ36 within the bar)
Cooling water pump power                    120w
Machine weight                              ≈1800kg
Machine dimensions (length*width*high)   ≈1850×1540×1750mm

              more details


              product benefits

 1. The assembly is convenient and simple. With a little training, we can finish

 the high quality assembly. Because the precision of the machine tool determines

 the precision of the transmission mechanism, the transmission mechanism is composed

 of the common wire rail and the wire rod, that is to say the precision of the line

 rail and the wire rod itself determines the precision of the machine tool. The line

 rail and the silk bar are generally in the form of standard parts. In general,

 there is no big problem.

   2. the choice of room, whether from the line track structure or precision grade,

 lubrication or load bearing capacity, processing mode to running speed and other

 parameters can be selected, you can according to the specific conditions of the

 machine tool you design, arbitrary configuration of the line model you need.

   3.  fast running speed, now many machine tools run fast, especially the air

 distance speed, which is largely dependent on the line rail, because the rolling

 friction operation and high precision processing, effectively guarantee the accuracy

 and stability of the machine tool high speed operation, greatly improve the processing

 efficiency and Machining precision.

               our factory

         Machinable products


                connect us


Skype:Eillen Huang



Hot Tags: heavy cutting liner guide slant bed cnc machine jd32p, China, factory, manufacturers, discount, customized
