start 00:00 Specification
Condition new Automatic grad Automatic Brand name Mars-cnc Certification CE ISO CNC or not CNC Place of origin yuhua-zhejiang Table size 600*380mm Table T-slot 3-18-120mm Table bearing capacity 400kg X-axis max stroke 450mm Y-axis max stroke 400mm Z-axis max stroke 450mm Spindle center to column rail 430mm Spindle nose to table 50/500mm Spindle taper hole’s model BT40 Main spindle speed 8000/10000/12000rpm Three -axis servo motor power 4.0mm Main spindle motor power 2.6/3.9kw Three -axis connection mode Straight league Three-axis ball screw specification 3212 Three-axis linear guide specification 30/30/30 Three-axis feed speed 20-15000min three-axis fast moving speed 36min Three-axis position accuracy 0.01mm Three-axis re position accuracy 0.006mm Cooling water pump 450w Machine weight 3800kg Machine dimensions (length*width*high) 1850*2000*2200 Packing&Delivery Packing Strong wooden Delivery Within the order of 60 Days
Machine Overview VMC600L vertical machining centre Mainly used for processing middle partand mould, the piece, can continuously finish milling, drilling, boring, reaming,tapping and other machining, single use, can also be multiple pipelined processingparts, has the features of strong cutting, high-speed positioning, electromechanicalintegration, automatic chip removal, convenient and safe protection and operation etc.. Product Details
Configuration Mitsubishi M80B system/ FANUC oi mate-MF Resin sand casting(Taiwan-China) S pindle (Taiwan-China) Ball screw and Precision nut C3 Level (Taiwan-China) Play knife cylinder(Taiwan-China) Linear guide(Taiwan-China) Wire rod bearing(Import NSK) Coupling (Import) guideway cover(Taiwan-China) Electric lubricating system (Domestic famous brands) High pressure Cooling water pump (Domestic famous brands) S pindle Synchronous belt (Taiwan-China) 24 station disk tool bank.(Taiwan-China) Main electric element (Germany-schneider) Main pneumatic element(AirTAC) Loosened buttons (Taiwan-China) Electrical box cooling system.(Domestic famous brands)

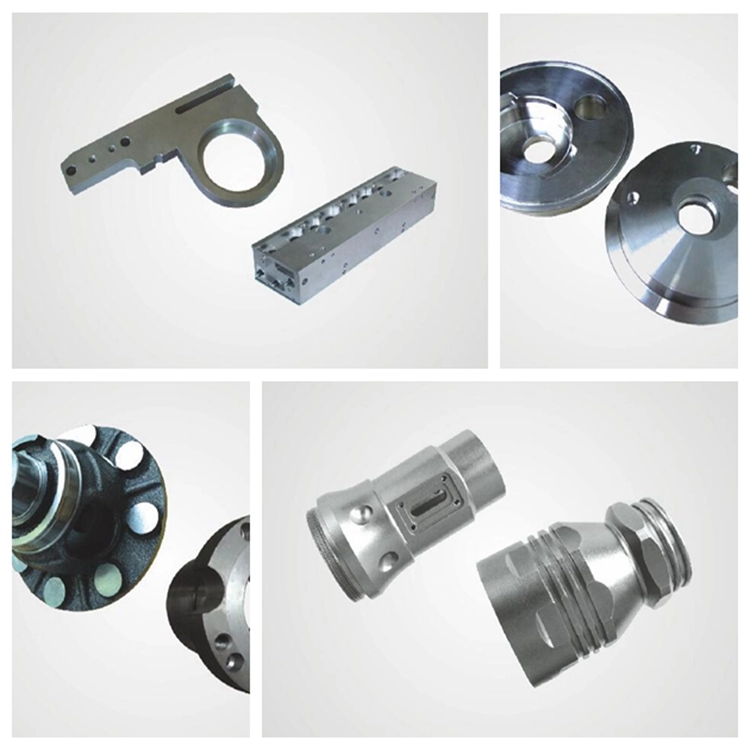

applicable machining samples
Company Profile JINGDUN machine tool co., LTD. Is located in China's southeast coast CNC machine tool manufacturing base, wei yu, valve, auto and motorcycle accessories - zhejiang yuhuan. The company has been established for 15 years, integrating scientific research and development, manufacturing, sales and after-sales service, specializing in the production of high-end, high -precision, automatic, composite series CNC machine tools. There are many varieties and specifications. The company has advanced production equipment and testing equipment, mature technology, scientific management, and owns a grow with the company - experienced, responsible, high skill, the technical backbone of high moral character and staff.
Our Factory Our Team Our After-sales Service Center 400 1810 880 Features:to provide customers with a full set of processing technology Before selling,our professional sale engineer will communicate with your requires, wil l suggest the best programme for you, meanwhile we are very gland to produce for your special requires. We promise free warranty from customer received the machine within one year if it caused by quality of equipment. We promise repair ,maintenace the amlfunction which beyond our warranty scope when costumer received our machine. We promise supply equipment auto part in all of its life. We will try our best to help you when you need during use our machine. Our Certificates FAQ Q . What payment terms you can accept? A:Mostly we adopt T/T ,But L/C D/P D/A also available. Q : What is the packing method? A:We use wooden cases for shipment. Q:Do you have a warranty? A: how long is the warranty? A:Yes we have. Our warranty period is one year. Q:How about your goods ? A:You can trust us .We have our own engineering team and they come from TaiWan. And we adopt Italy advanced core technology.
