Vertical Machining Center Line Rail VMC-800L

Vertical Machining Center Line Rail VMC-800L

Machine Characteristics The vertical machining center has the workpiece clamping, location convenient, easy to observe the motion trajectory of the cutting tool, the debugging program inspection and measurement convenient, the problem can be found in time, the machine can be shut down or......
Chat Now

Machine Characteristics

The vertical machining center has the workpiece clamping, location convenient, easy to observe the motion trajectory of the cutting tool, the debugging program inspection and measurement convenient, the problem can be found in time, the machine can be shut down or modified, the cooling conditions are easily established, the cutting fluid can directly reach the cutting tool and the machining surface; the three coordinate axis is in accordance with the Cartesian coordinate system and feels straight. Consistent with the view, the chip is easy to exclude and drop and avoid scratching the surface. Compared with the corresponding horizontal machining center, the structure is simple, the floor area is small, and the price is low.

The vertical machining center is easy to install, easy to operate, easy to observe and process, easy to debug, and widely used. But by the height of the column and the restriction of the knife changing device, it can not be processed too high. In the machining cavity or the concave surface, the chip is not easy to discharge. When it is serious, it will damage the tool, destroy the machined surface and affect the smooth process. The vertical machining center lubrication system simply means that the lubricating oil and compressed air are mixed together to form a turbulent mixed flow of oil and gas to be sent to the spindle or other lubricating parts of the machining center.

Machine tool manufacturing industry in China is facing a good opportunity for the development of manufacturing equipment industry. Machine tool is the machine machine machine machine, the basic equipment of equipment manufacturing, processing center is a typical CNC machine tool, its production and sales account for 30% ~ 40% of the CNC machine tool market, vertical machining center is the main processing center. For the product, its spindle axis is perpendicular to the horizontal plane. The main user level of the vertical machining center is the preferred automotive parts industry, as well as engineering machinery, military workers, molds, valves, aircraft, medical equipment, electric power, optical equipment and other industries.

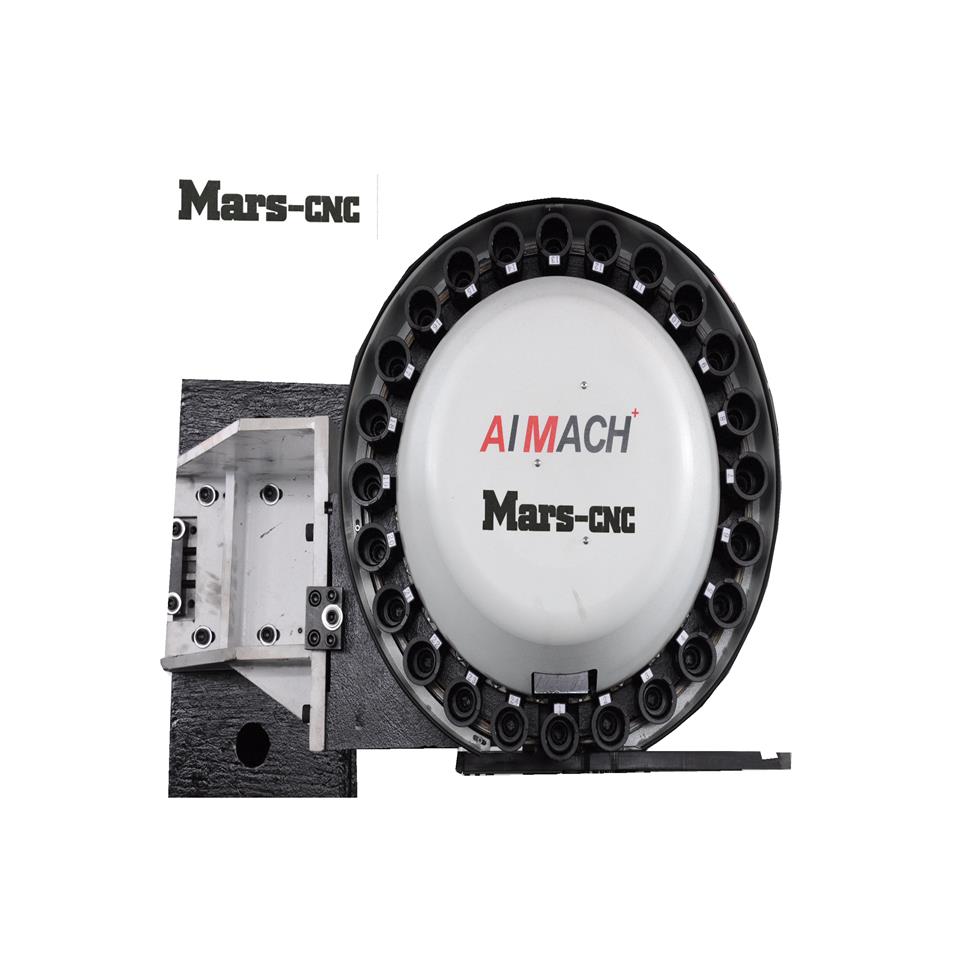

Machine detail diagram


Machine parameters

Bed dimension mm 900*450
T slot mm 5-18-80
Load carring capacity kg 450
X axis max. Travel mm 800
Y axis max. Travel mm 450
Z axis max. Travel mm 450
Spindle center to column guide rail mm 535
Spindle end to table surface mm 100/550
Spindle taper type BT40
Spindle speed RPM 8000/10000/12000
Spindle motor power KW 7.5
Triaxial servo motor power NM 10/10/15
Triaxial connecting type directly connect
Triaxial roller screw specification 3216
Traxial linear guide specification (X/Y/Z) 35/35/35
Traxial feed speed mm/min 20-15000
Traxial rapid traverse m/min 48
Traxial position precision mm 0.01
Traxial repeated position precision mm 0.006
Cooling water pump power w 450
Weight kg 4500
Overall dimension (L*W*H) mm 2600*2200*2050
