CNC Lathe Machine

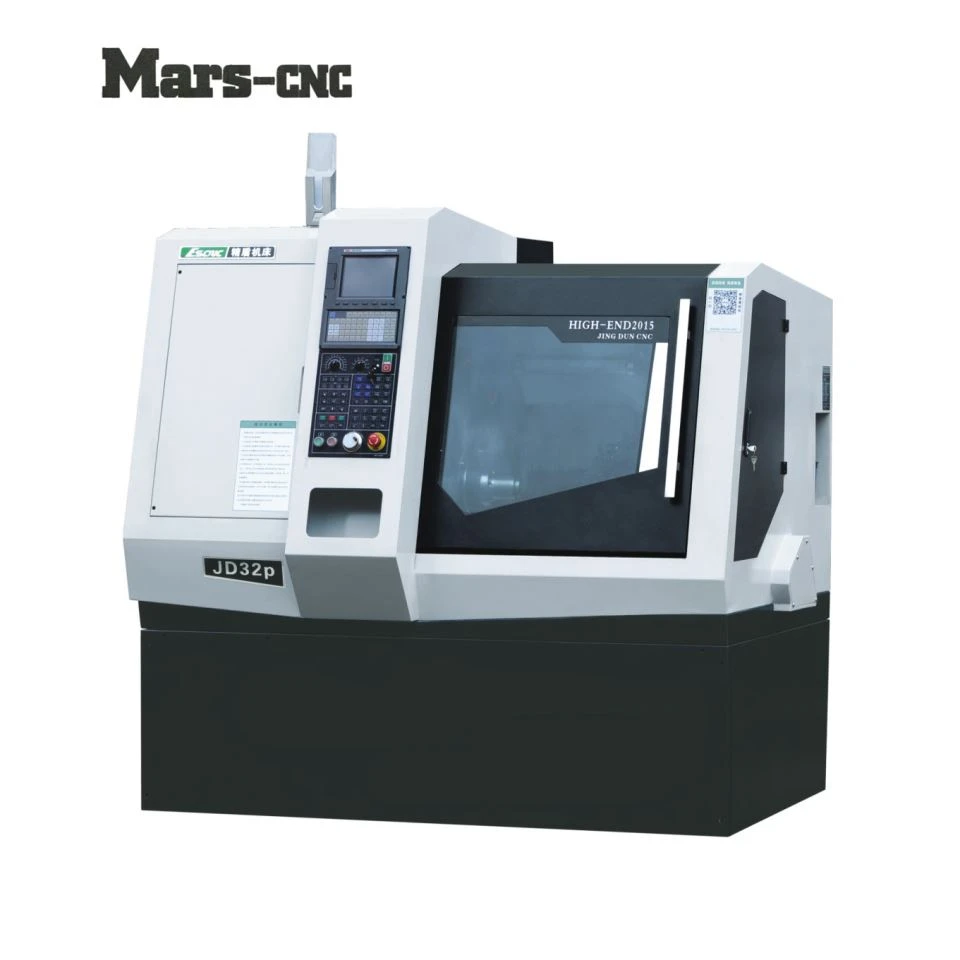

China Top 1 Slant Bed Cnc Lathe Machine

China Top 1 Slant Bed Cnc Lathe Machine

JD32P Slant bed CNC lathe is a high speed, high precision, high reliability.casting resin sand process of cast iron, after high temperature aging treatment,which guarantees the machine to permanent stability, guide rail adopts 35 degree tilt, greatly improve the rigidity of the machine tool, line rail adopts Taiwan roller linear guide for heavy cutting. With 12 position servo turret and hydraulic tail stock,one-time processing multi tool requirements and shaft products....

The development of CNC machine tools

   CNC machine tools were first born in the United States. In 1948, when the U. S. Parsons Company developed a prototype machine tool for machining the blade profile of a helicopter, it proposed the idea of CNC machine tools. Then, the United States Air Force commissioned the cooperation between the Massachusetts Institute of Technology and the Massachusetts Institute of Technology. In 1952, the first NC vertical milling machine in the world was tested, and the CNC system used the electronic tube. Since 1960, CNC machine tools have been developed, produced and used in Germany, Japan, China and so on. In 1968, the first CNC machine tool was developed by the first machine tool factory in Beijing. In 1974, microprocessor was directly used in CNC machine tools, which further promoted the popularization, application and rapid development of CNC machine tools.


Machine tool parameters

Main technical parameters            UnitJD32P
Maximum rotary diameter of the bed    mmΦ400
Maximum turning diameter of a mop   mmΦ150
Maximum Z travel                    mm280(Limited travel except chuck)
Maximum X stroke                    mm600
Fast moving speed                   m/minX:24 Z:24
Diameter of spindle hole               mmΦ48
Spindle motor power                  kw3.7servo
Spindle speed                        rpm5000
Cutter area                          mm20×20
X direction,Z to motor torque           nm6NB.6N
X to,Z to the motor
Straight league
X direction,Z to the screw bar specification
X:2510 Z:3210
X direction, Z to roller rail specification
X:30 Z:35
Repeat positioning accuracy                mm0.002
Positioning accuracy(machine accuracy)      mm0.01
Spring clamping specification
Φ56 Clip head,M48 tube
Chuck specifications                       mmΦ200/Φ160(8"/6")
Hydraulic rotary oil cylinder specification(hollow)  536(can pass Φ36 within the bar)
Cooling water pump power                    W120
Machine weight                              Kg≈1800
Machine dimensions (length*width*high)   MM≈1850×1540×1750


Development trend of Chinese machine tools

At present, the development of CNC machine tools is changing with each passing day. High speed, high precision, compound, intelligent, open, parallel drive, network, extreme and green have become the trend and direction of CNC machine tool development. As a big manufacturing country, China mainly depends on the comparative advantages of labor, price and resources, and the gap between the technological innovation and the independent development of the products is still very large with the foreign counterparts. China's numerical control industry should not be satisfied with the status quo. It should seize the opportunity to develop, develop its own advanced technology, increase the strength of technical innovation and talent training, improve the comprehensive service ability of the enterprise, and try to shorten the gap with the developed countries. We strive to realize the transformation of CNC machine tools from the low end to the high end, from the primary product processing to the high precision product manufacturing, and to realize the transformation from Chinese manufacturing to China, from the manufacturing country to the manufacturing power.

About our factory

The company was founded in 2003, which integrates scientific research and development, manufacturing, sales and after-sales service. It specializes in high end, high precision, automation, and complex series of CNC machine tools. It has many varieties and the same specifications. The company has advanced production equipment and testing equipment, mature technology, scientific optimization management, and has always developed with the company - experienced, responsible, high skilled, high moral technical backbone and staff

The company has always carried out the concept of "people-oriented, quality seeking, continuous innovation": Taking Lean quality and service as the aim, listening to the voice of the market and setting the product position, considering the quality of excellence as the first life, always paying attention to the requirements and suggestions of each user, providing and solving the full machine processing plan for the majority of users. Always pay attention to each employee's awareness and improvement of product quality consciousness, provide customers with satisfactory products and excellent after-sales service.

About our products

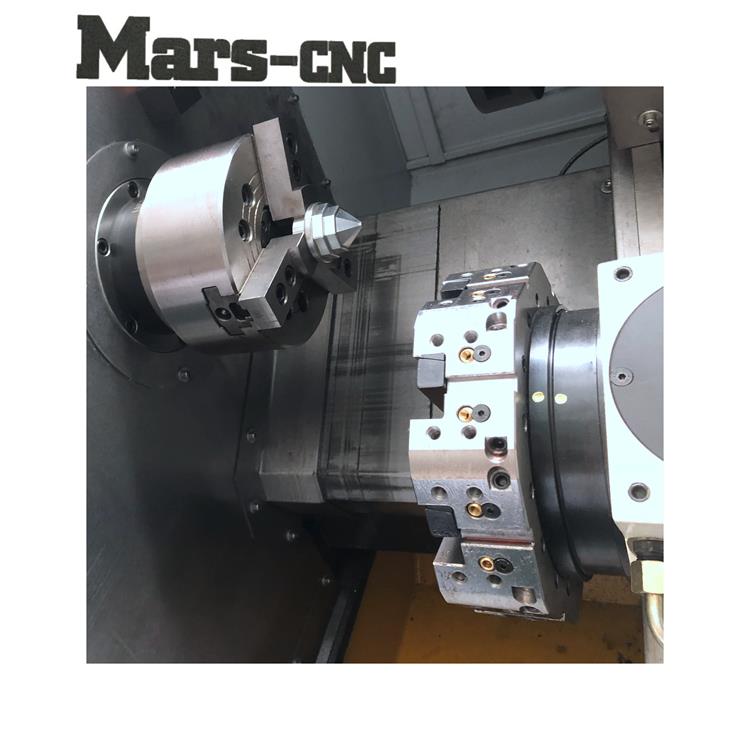

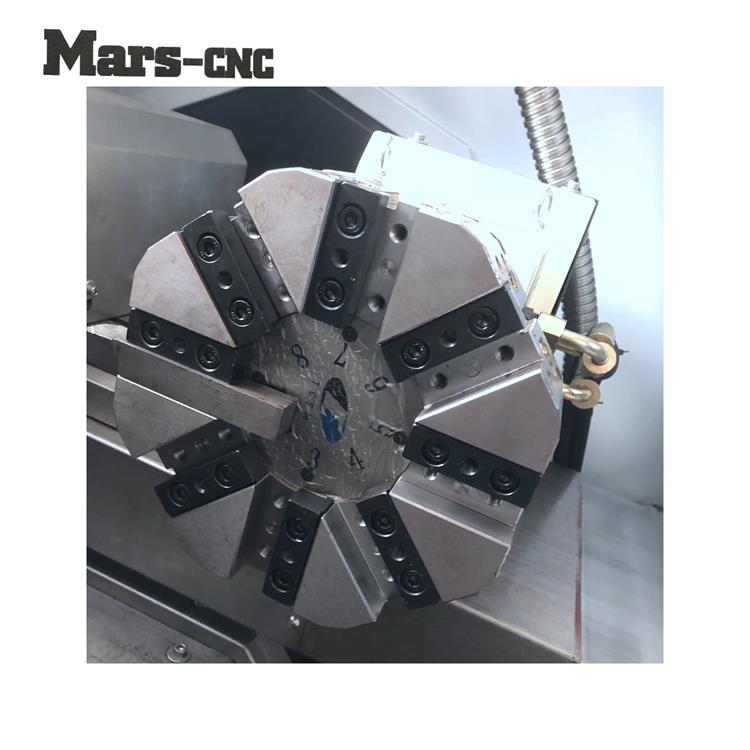

JD32P Slant bed CNC lathe  is a high speed, high precision, high reliability.casting resin sand process of cast iron, after high temperature aging treatment,which guarantees the machine to permanent stability, guide rail adopts 35 degree tilt, greatly improve the rigidity of the machine tool, line rail adopts Taiwan roller linear guide for heavy cutting. With 12 position servo turret and hydraulic tail stock,one-time processing  multi  tool  requirements  and  shaft  products.

This machine has the advantages of beautiful appearance, humanized design

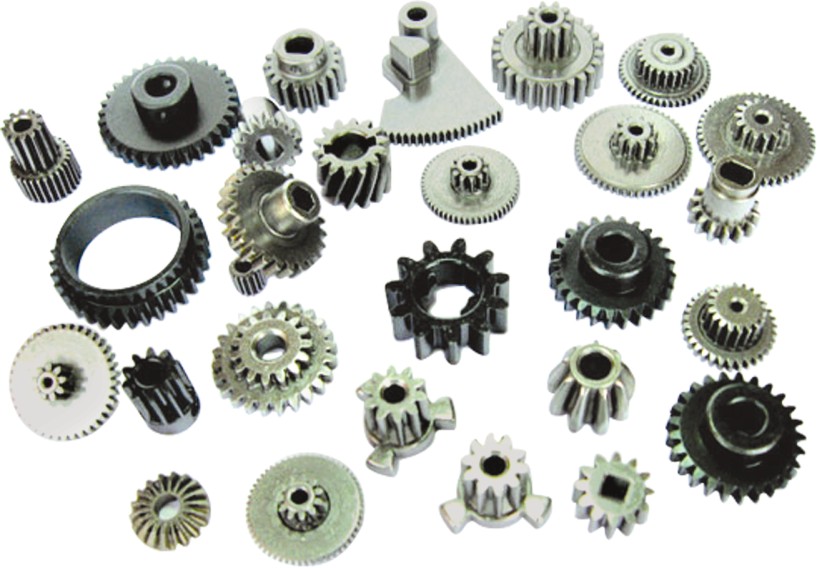

Products that can be produced by machine tools

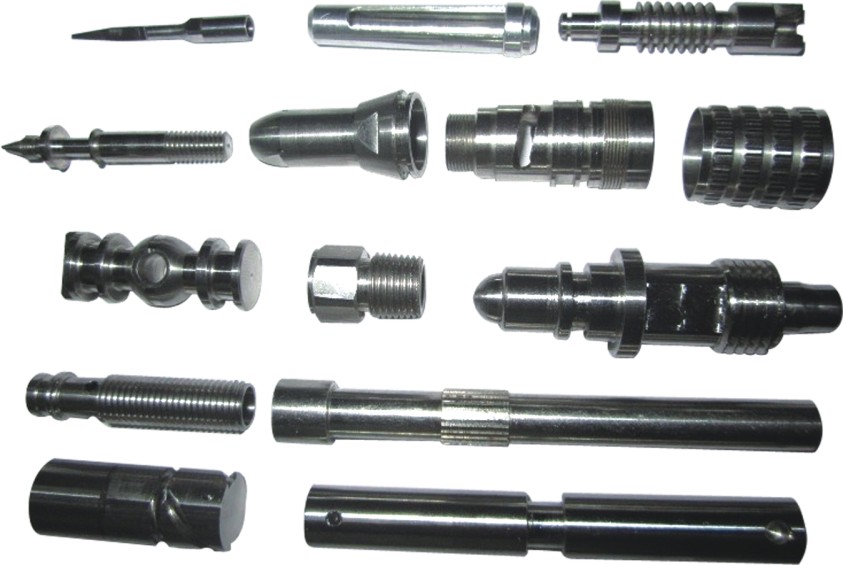

JD32P mainly produces shaft parts, such as long shaft parts, short shaft parts, and then can produce disc accessories. It has the function of chip removal, and the machine tool is rigid.

The heavy cutting rail can meet the customers' requirements for different material processing.



 Please contact me

Contacts:tracyYAN

QQ:1519314579

Wechat:YT1519314579

WhatsAPP:15958630232

phone:15958630232

Company address:Huihai Road 47#,Bingjiang Industrial city,YUHuan city,Zhejiang pro
