CNC Lathe Machine

Best Selling Cnc Cutting Machine Line Rail JD36P

Best Selling Cnc Cutting Machine Line Rail JD36P

Machine Details Brand name Mars-cnc Dimension(L*W*H):2030*1500*1550mm Certification CE ISO Weight: 2500kg CNC or not CNC Certification:ISO9001,CE,SGS Place of origin yuhuan-zhejiang After-sales Service Provided: Overseas third-party support available CNC or Not: CNC CNC Product name:JD36P......
Chat Now

                    Machine Details

Brand name                         Mars-cnc                                             Dimension(L*W*H):2030*1500*1550mm

Certification                         CE ISO                                                Weight: 2500kg

CNC or not                          CNC                                                    Certification:ISO9001,CE,SGS

Place of origin                     yuhuan-zhejiang                                 After-sales Service Provided:  Overseas third-party support available

CNC or Not: CNC                          CNC                                                                      Product name:JD36P Vertical machining center

Voltage                               Customer's Requirement                     Price:Chinese best price

                   Specification

Main technical parameters            JD36P
Maximum rotary diameter of the bed    Φ500mm
Maximum turning diameter of a mop   Φ200mm
Maximum Z travel                    Standard model 390/length 470mm
Maximum X stroke                    600mm
Fast moving speed                   X:24 Z:24m/min
Diameter of spindle hole               Φ56mm
Spindle motor power                  5.5servo kw
Spindle speed                        5000rpm
Cutter area                          20×20mm
X direction,Z to motor torque           7.7NB.7Nnm
X to,Z to the motorStraight league
X direction,Z to the screw bar specificationX:2510 Z:3210
X direction, Z to roller rail specificationX:25 Z:30
Repeat positioning accuracy                0.002mm
Positioning accuracy(machine accuracy)      0.01mm
Spring clamping specificationΦ65 Clip head,M55 tube
Chuck specifications                       Φ200/Φ160(8"/6")mmmm
Hydraulic rotary oil cylinder specification(hollow)  646(can pass Φ46 within the bar)
Cooling water pump power                    220w
Machine weight                              ≈2500kg
Machine dimensions (length*width*high)   ≈2030×1500×1550mm

                 Packing & Delivery

Packing

            Strong wooden case packing

Delivery Time

                     Within 60 days

               Machine Overview

VMC  machine centre Mainly used for processing middle part and mould, the price, can continously

 finish milling, drilling, boring, reaming, tapping and other machining, single use, can also be multiple

pipelined procesing parts, has the features of strong cuting, high-speed positioning, electromechanica

lintegration, automatic chip removal, convenient and safe protection and operation ect.



  • High Quality Manufacturing factory provide China CNC milling machine   图片1_副本.jpg


                  Product Details



                    Main Features

Higher working efficiency

Higher rigidity cast iron

Fully enclosed-safety

                     Configuration

Mitsubishi M80B system/ FANUC oi mate-MF

Resin sand casting(Taiwan-China)

Spindle (Taiwan-China)

Ball screw and Precision nut C3 Level (Taiwan-China)

Play knife cylinder(Taiwan-China)

Linear guide(Taiwan-China)

Wire rod bearing(Import NSK)

Coupling (Import)

guideway cover(Taiwan-China)

Electric lubricating system (Domestic famous brands)

High pressure Cooling water pump (Domestic famous brands)

Spindle Synchronous belt(Taiwan-China)

24 station disk tool bank.(Taiwan-China)

Main electric element(Germany-schneider)

Main pneumatic element(AirTAC)

Loosened buttons(Taiwan-China)

Electrical box cooling system.(Domestic famous brands)

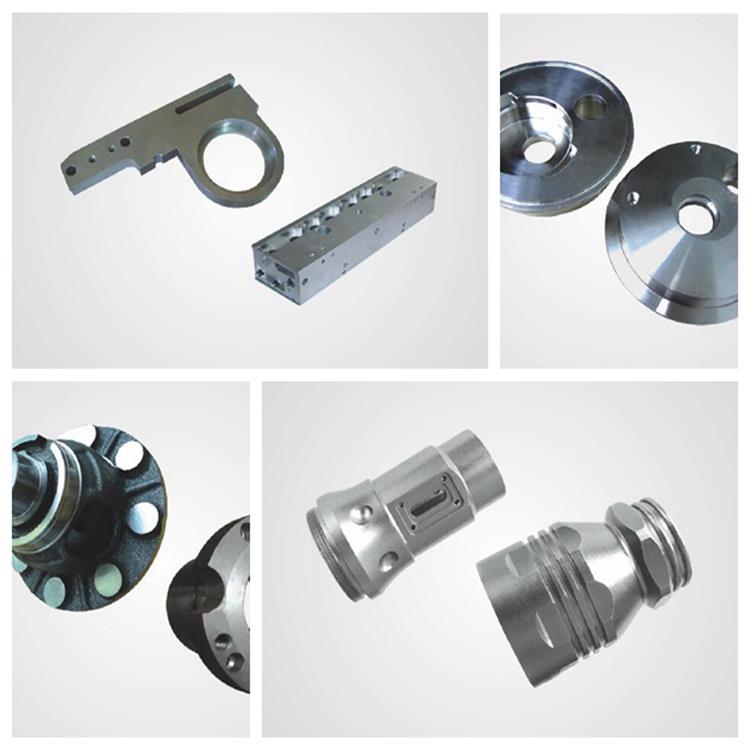

       applicable machining samples

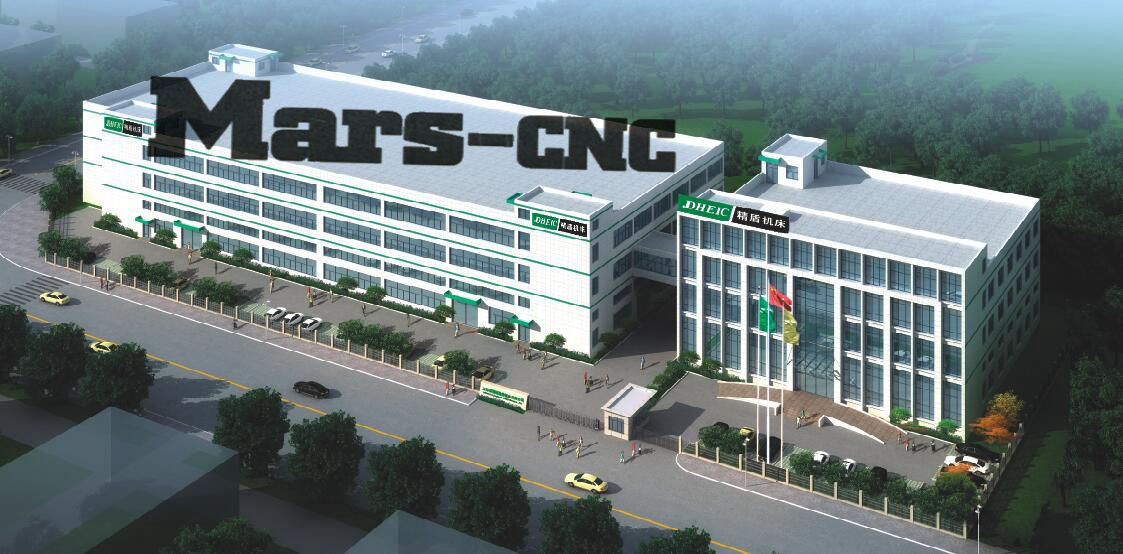

                 Company Profile

 JINGDUN machine tool co., LTD. Is located in China's southeast coast CNC

 machine tool manufacturing base, wei yu, valve, auto and motorcycle accessories

 - zhejiang yuhuan. The company has been established for 15 years, integrating

scientific research and development, manufacturing, sales and after-sales service,

 specializing in the production of high-end, high-precision, automatic, composite series

 CNC machine tools. There are many varieties and specifications. The company has

 advanced production equipment and testing equipment, mature technology, scientific management, and owns a grow with the company - experienced, responsible, high skill,

the technical backbone of high moral character and staff.

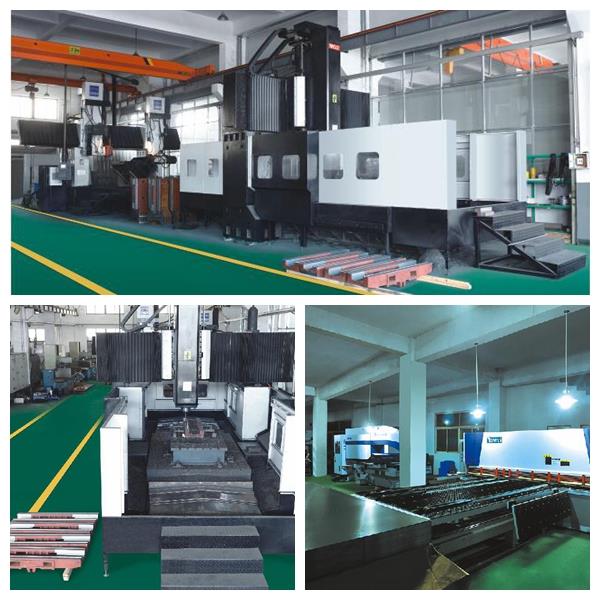

                      Our Factory



        Our After-sales Service Center

 400 1810 880

Features:to provide customers with a full set of processing technology

Before selling,our professional sale engineer will communicate with your requires,

 will suggest the best programme for you, meanwhile we are very gland to produce

 for your special requires.



We promise free warranty from customer received the machine within one year if it

 caused by quality of equipment.



We promise repair ,maintenace the amlfunction which beyond our warranty scope

when costumer received our machine. We promise supply equipment auto part in all

 of its life.



Our company have professional services sites for customers with professional machinery.electronic, hydraulice service workers,we can supply to service same

province customers



We will try our best to help you when you need during use our machine.

                             FAQ

Q.What payment terms you can accept?

A:Mostly we adopt T/T ,But L/C D/P D/A also available.

Q:What is the packing method?

A:We use wooden cases for shipment.

Q:Do you have a warranty? A: how long is the warranty?

A:Yes we have. Our warranty period is one year.

Q:How about your goods ?

A:You can trust us .We have our own engineering team and

they come from TaiWan. And we adopt Italy advanced core

technology.


                      Contact Us

Wechat:hjt18827559079

WhatsApp:+86 15958609676

Skype:Eillen Huang

           +86 15958609676






Hot Tags: best selling cnc cutting machine line rail jd36p, China, factory, manufacturers, discount, customized
